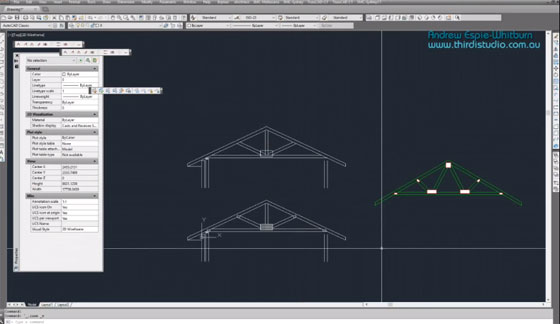

How to use TrussCAD, a autocad based program, to draw roof truss section detail
In this autocad tutorial, you will learn how to create the drawing of a roof truss section detail with the use of AutoCAD. You will also learn how section detail can be produced with lines, polylines, and hatches.
The tutorial is created with TrussCAD, an exclusive plugin program for AutoCAD.
It can be used to sketch timber roof and floor trusses in your AutoCAD drawings together with roof battens and roof tiles rapidly and save significant time.
The created lines can be entirely edited in AutoCAD if necessary. Trusses are formed on the basis of the user input and can be edited like standard AutoCAD lines and polylines. All colors of the line work can be modified to fit your office standards. With TrussCAD, it is possible to arrange roof battens on the Roof trusses for both Tiled and Sheet roofs.
The roof battens for tiled roofs also produce the roof tiles.
It supports full versions of AutoCAD 2000 and higher.
To download the software, click on the following link thirdistudio.com.au/TrussCAD
The files which are used in this tutorial can be downloaded from the following link www.thirdistudio.com.au
To get more details, watch the following video.
Video Courtesy: CAD in black
