Download Revit Families | Revit 2021 Family Library

Tweet

Revit family library contains fully functional templates and 3D models of different objects. These 3D objects have been made for objects like windows, doors, stairs, and other objects that are required for making an innovative design. These 3D designs and templates from the Revit family library can be downloaded from external sources including several reliable websites. The Revit 2021 family library is one of the important parts of Revit as the innovative Revit 3D models are made from different Revit families.

Types of Revit 2021 Families in the Revit

The Revit 2021 families are the essential building components that are available in different types. These types include:

System families

These types of Revit families are the built-in elements that are created in the project environment. Roofs, walls, and floors are examples of system families.

In-Place families

The in-place families refer to the project-specific and custom elements that are created in the project environment.

Loadable families

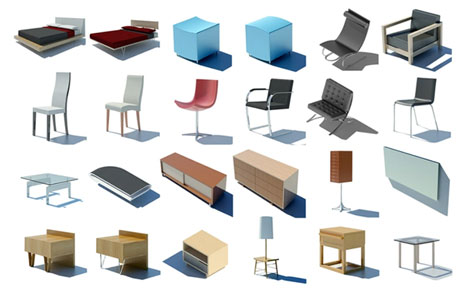

These are the pre-built or user-created elements. These elements are loaded into the project on the basis of its requirements. In the Revit family editor, these loadable families can be created and modified according to the project's needs. Windows, furniture, doors, and other pre-built elements are examples of this loadable family.

Nested families

These families are used for making complex components.

Work Plane-based families

These are the loadable families that require a defined work plane for making the Revit design.

Grouped families

These building components are made with multiple elements that are combined and make a reusable object in Revit.

Line-based families

Line-based families are also the type of loadable families which has been created by drawing a line.

Adaptive families

These Revit 2021 families have the capability to adopt different types of project conditions by using their adaptive points.

Face-based families

These Revit 2021 families have been placed on the surface of the planer. The orientation or the location of these types of families can be adjusted on Revit as per the design requirements.

The process of loading Revit families

The following steps have to be followed to load the Revit Families:

1. Firstly, go to the insert tab then load from the library and go to Load family.
2. After that, double-click on the Revit family category as per the requirement.
3. Select the Revit Family that is required for making the design and click on it to open the family.

Thus, the Revit family is loaded and can be used to make innovative designs.

The websites that offer free Revit families

BIM-smith Market

This is one of the best BIM platforms as per the opinion of AEC professionals. The multiple layers of Revit assemblies including floors, ceilings, walls, or roofs are available for free on this platform.

RBI Water Heaters

By using this website, the design community can use and download the library of BIM objects for free. Numerous design objects are available as Zip files. In this context, the design objects which require bidirectional communication have to be saved as .TXT and .RFA to get the proper operations.

Revit-City

This website offers better features than just getting free access to the Revit families. Users can get their answers regarding the designs, share their ideas about the designs, and find the answers to their questions easily.

Smart BIM Library

This site offers a range of Revit families that are easy to find.

BIM Object

This is the digital management system that is widely used for making architectural designs. On this website, users can get 33,837 product families, 16,493,712 products, and 244,292 parametric BIM objects.

Specified-By

The manufacturer-specific content is available at a broad range on this website. On this website, there is a large BIM library in which users can search the information, and filters and find out appropriate design components as per their needs.

Modlar

It has a broad range of custom products that can be used in making designs for projects. These all custom products are free to download but users have to sign in on this website to get free access to the custom products for their designs.

The National BIM Library

All the BIM components that are compatible with the BIM products are available on this website for download.

ARCAT

This website also offers access to the BIM resources as well as access to CAD. In addition, this website also offers concrete pollution control systems for free without registration.

Revit Components

On this site, there are some free design components that are useful for making designs of furniture and interiors.

To get online demonstration, watch the following video tutorial.

Video Source: CAD Masters

Turbo-Squid

In Turbo-Squid, very few design components are available for free. On this website, most of the components can be used by paying a certain amount. The amount of payment depends upon the time that the users spend to create the design models in Revit.

Ruby-Sketch

There are lots of Revit families available in Ruby-Sketch. A variety of products including plumbing and mechanical fixtures are available on this website.

BIM Catalogs

In BIM Catalogs, most of the contents are manufacturer-specific.
